INDUSTRIAL VALVES

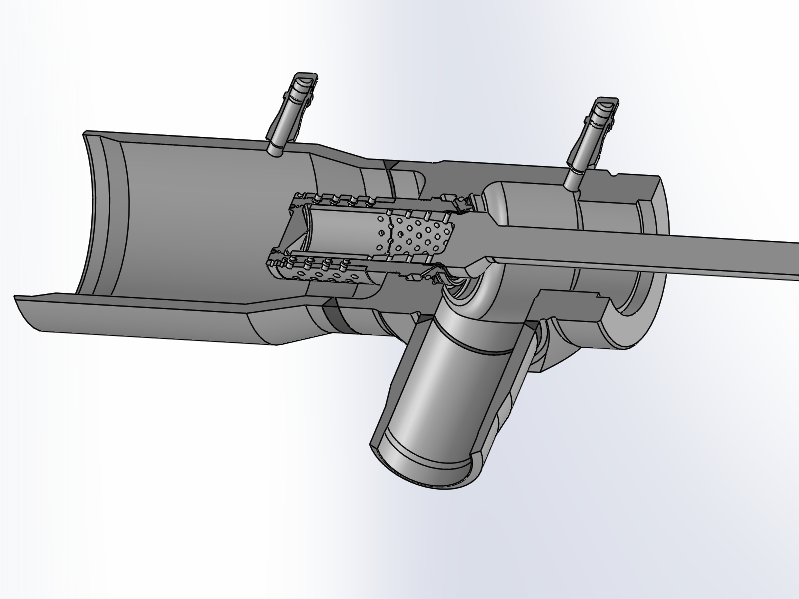

Turbine Bypass Valves
Our turbine bypass valves are engineered to ensure precise steam pressure control and effective desuperheating during turbine start-up, shutdown, and load transitions. Designed for critical power and process applications, they protect downstream equipment while ensuring system stability and responsiveness.
KEY FEATURES
- Precise Modulation & System Protection: esigned to handle rapid changes in operating conditions, these valves provide accurate steam flow control, protecting both turbine and condenser from pressure surges and thermal shock.
- Fully Machined Body Design: The valve body and bonnet are internally and externally machined to minimize thermal stress and promote structural integrity, even under severe service.
- Bonnet Configuration Options: Available with both bolted and pressure-seal bonnet designs, depending on service pressure and temperature requirements.
- Tight Shutoff Performance: Various trim configurations are available, including pressure-balanced and pilot-balanced solutions, capable of achieving up to Class V shutoff.
- Easy Maintenance: All internal components, such as seat rings and pressure-reduction stages, are designed for fast access and replacement, minimizing downtime.
- Water Injection After Pressure Reduction
- Variable Geometry Spray Nozzles
- Noise & Vibration Control
DESIGN FEATURES
- ASME B16.34
- ANSI 150 to ANSI 4500 / PN10 to PN640
- up to 650 °C
- from DN40 (1½") up to DN900 (36")
